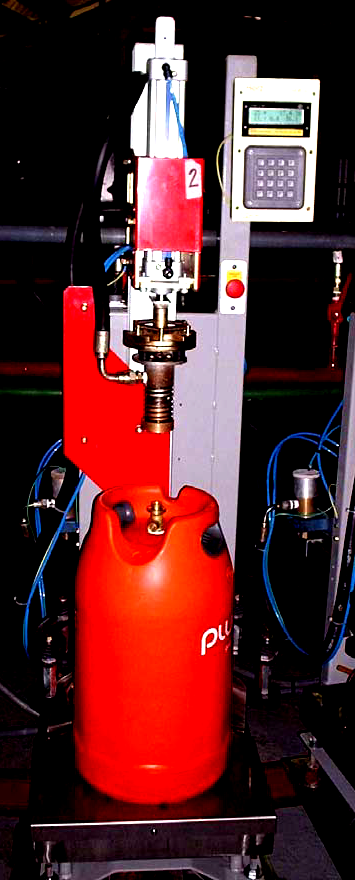

Stationary Filling Machine

Electronic filling machine (EFM) use for filling the LPG in different type cylinder and  valves. For 5K.G, 12KG,14.2KG,19KG,35KG,47KG LPG Cylinders.

• Intrinsically safe controller (EEx ib).
• Static steel frame containing the electro-pneumatic components.
• Weighting frame tared to system, lightweight and resistant.
• High quality spring balancer for filling gun/s.
• Multiple filling heads.
• 200/500kg capacity electronic load cell (Accuracy class 3 3000d)OIML R60 NTEP compliant.
• LC-01x  EEx ib IIB T4 controller with displaymanaging general functions in the EFM.
• Electro-pneumatic jack on board.
• 1 stage LPG cut off valve, 2 stages (optional).
• On/Off pushbutton and Emergency stop with retention.
• Installation over existing filling carrousels
